Float & Board Level Gauge

Float & Board Level Gauge
Send Inquiry
Product Code : LG-108
Brand Name : KABIR INSTRUMENTS
Product Description
With the help of our engineers, we are affianced in manufacturing, exporting and supplying Float & Board Level Gauge. This gauge is generally used for measuring the level of fluids in different industrial applications. The offered gauge is manufactured by our deft professionals using optimum quality components and sophisticated techniques. Also, our valued clients can avail this Float & Board Level Gauge at competitive prices from us.

Features:
  • Sturdiness
  • Accurate results
  • Corrosion proof
  • Trouble free operation

Other Features:

  • Clear visibility
  • Powder coated screen printed scale board
  • Less corissosion powder coated finish
  • Easy movement nylon roller pointer glides effortlessly
  • No guide wire specially designed self centering float/ Anchor plate optional
  • Non- stretching multistrand wire rope in SS/PP
  • Dust free housing for pulleys - minimizing friction in movement
  • Easy to install, modular design,
  • Vapour tight-version for evaporating fluids

Applications:

  • Water, Veg oil, LSHS, Molasses, Caustics, Brine, H2SO4 etc. Vapour sealed for Solvent, Hcl, and NH40H etc.

Mainly Use for Storage tank of oil, F.0, Fire/Dm Water Tank, Lube oil, HCL Acid, Alkalis, etc. Vapour seal for Special application like HCL,N2,Purged Tank, Diluted alkalis etc.

Suitable for Tall & Large Tank non pressurized and non hazardous chemical Storage Tank.

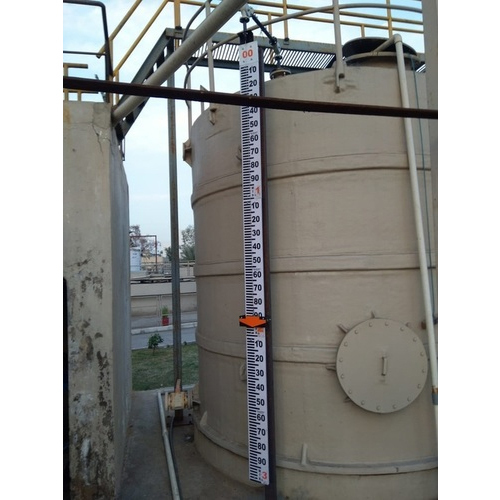

A large Self centered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free pulley.

Level is Indicated by a Pointer moves on a 150 mm Width Aluminum Powder Coated Scale.

Height 1 mtr to 30 Mtr and other on request.

Available in Polypropylene & Ptfe Coated Float. Scale marking in 5 mm,10 mm.
