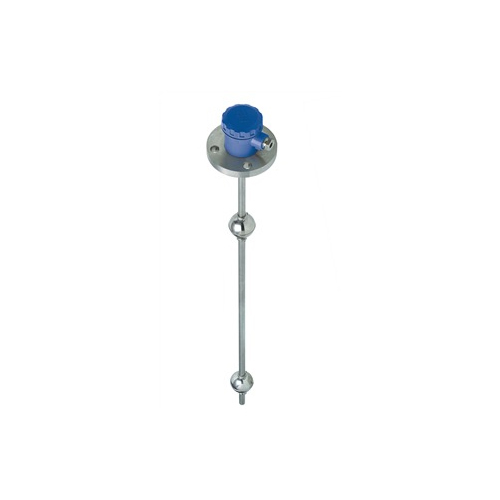

Top Mounted Level Transmitter

Top Mounted Level Transmitter
Top Mounted Level Transmitter
Send Inquiry
Product Code : TMLT
Brand Name : KABIR
Product Description

Kabir Make Top Mounted Level Transmitter. The offered transmitter is manufactured with high grade raw material and contemporary technology in synchronization with the set standards. Our range of Top Mounted Level Transmitter is high on demand among patrons due to its embellished features.

Features:

  • High Durability
  • Accuracy
  • Hassle free performance

Other Details:

  • 2 wire system
  • Continuous 4-20 mA DC output
  • Simple low cost & reliable
  • Trouble free operation for conductive / non conductive
  • Liquids, slurries
  • Flameproof IP-65, P-65, IIA IIB, CMRI Certificate housing

Technical Specifications:

  • Probe Length: As per requirement (mx 3 mtr.)
  • Type of Output: 4 to 20 mA DC, 2 wire
  • Accuracy: ±2% F.S.
  • Linearity: ±2%
  • Process Temperature: 250° C max
  • 2 Probe MOC: 30 kg/cm max
  • Power Supply: SS 316 with PTFE coating
  • Power Consumption: 24 V DC, External
  • Response Time: < 6 VA
  • Temperature Coefficient: < 1000 m Sec
  • Process Connections: Flame-proof, [P-65, IIA, IIB, CMRI Certified]
  • Mounting: Flanged/ Threaded
  • Operating Conditions: Top of the tank
  • Optional: Temperature 0 to 55° C/Humidity 5 to 95% non condensing
  • Local Display: 8 x 1 LCD
