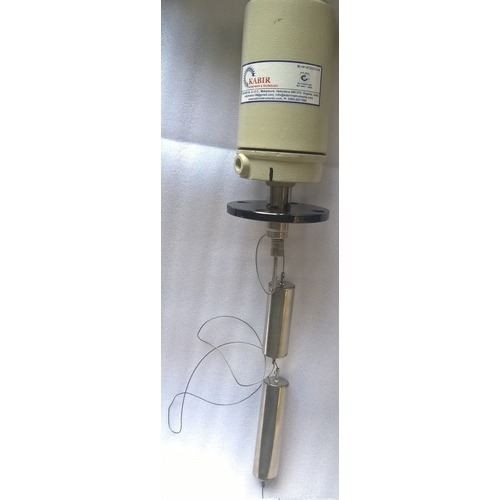

Displacer Level Switch

Displacer Level Switch
Displacer Level Switch
Send Inquiry
Product Code : DLS-108
Brand Name : KABIR INSTRUMENTS
Product Description

We are well established across the industry as one of the leading manufacturers and exporters of Displacer Level Switch. These switches provide excellent control over the liquid present underground and in the overhead tanks. Especially developed for industry, our offered switches are well known for their reliable and safe operations. The comprehensive gamut of Displacer Level Switch is delivered to the customers in custom as well as standard specifications.

Features:

  • Maintenance free
  • User friendly
  • Rugged design

Working principle

A displacer is fixed on a stainless steel cable. Its density is higher than the measured density. So it always prolongs the spring. Under free condition, the spring is prolonged to preset length and keep the spring within certain elastic limit by a stainless steel stopper. The first magnet is located in the spring guide rod and moves up and down as the spring expanding or contracting. There is an up/down adjustable switch outside pressure pipe in the housing. As liquid level rising and the displacer immersed, the increased volume of buoyancy force is equal to the weight force of displaced liquid volume by Archimedes principle. As spring elastic force diminishing and spring constriction, the first magnet will move up to trigger the mechanical switch. When the liquid level decreasing, displacer emerges from liquid level, spring receives that added force, and spring increases to a certain length, the first magnetic switch move and the switch is reset to former state by action of first magnetic switch.

DISPLACER LEVEL SWITCH

Displacer is suspended by a spring when liquid level up and covers the displacer

It becomes lighter and the spring relaxes, the switch rod assembly inside the casing

which activates the magnetically operated micro switch

Suitable for High Temperature & High Pressure Height up to 10 Mtr other on your request
