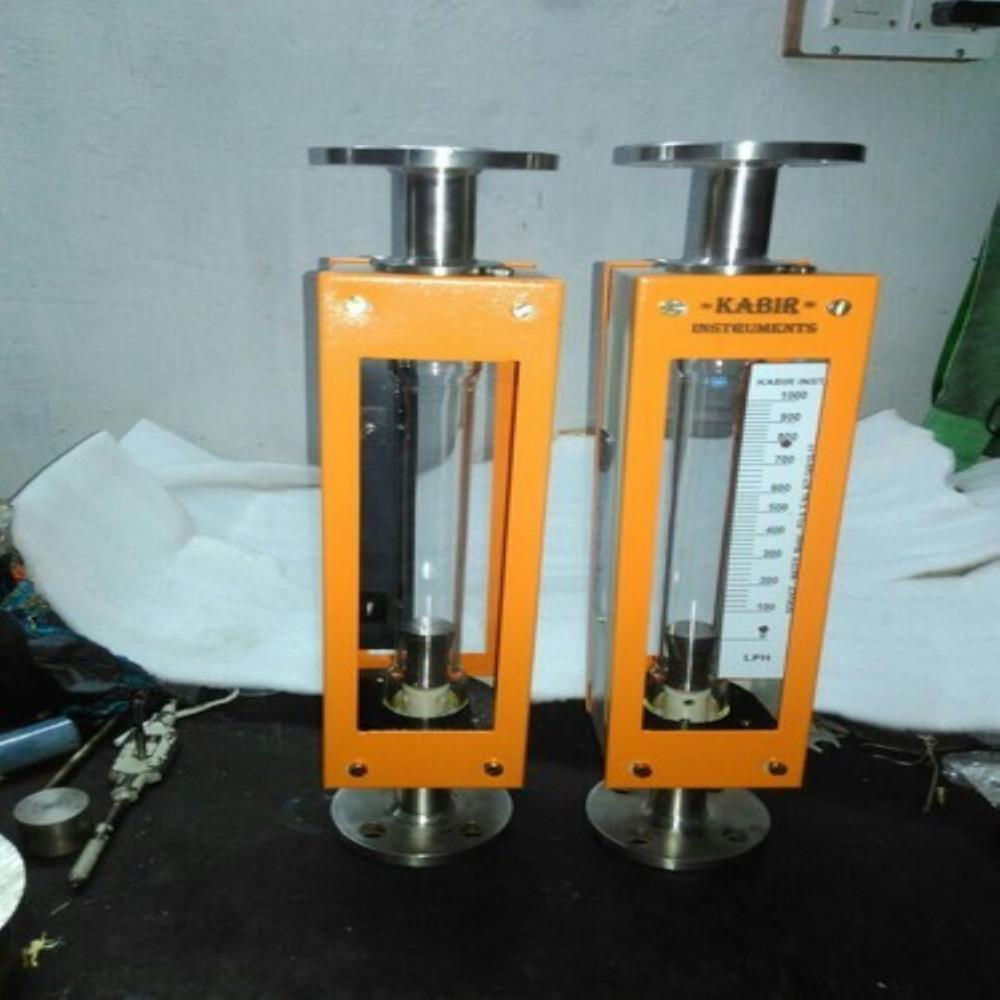

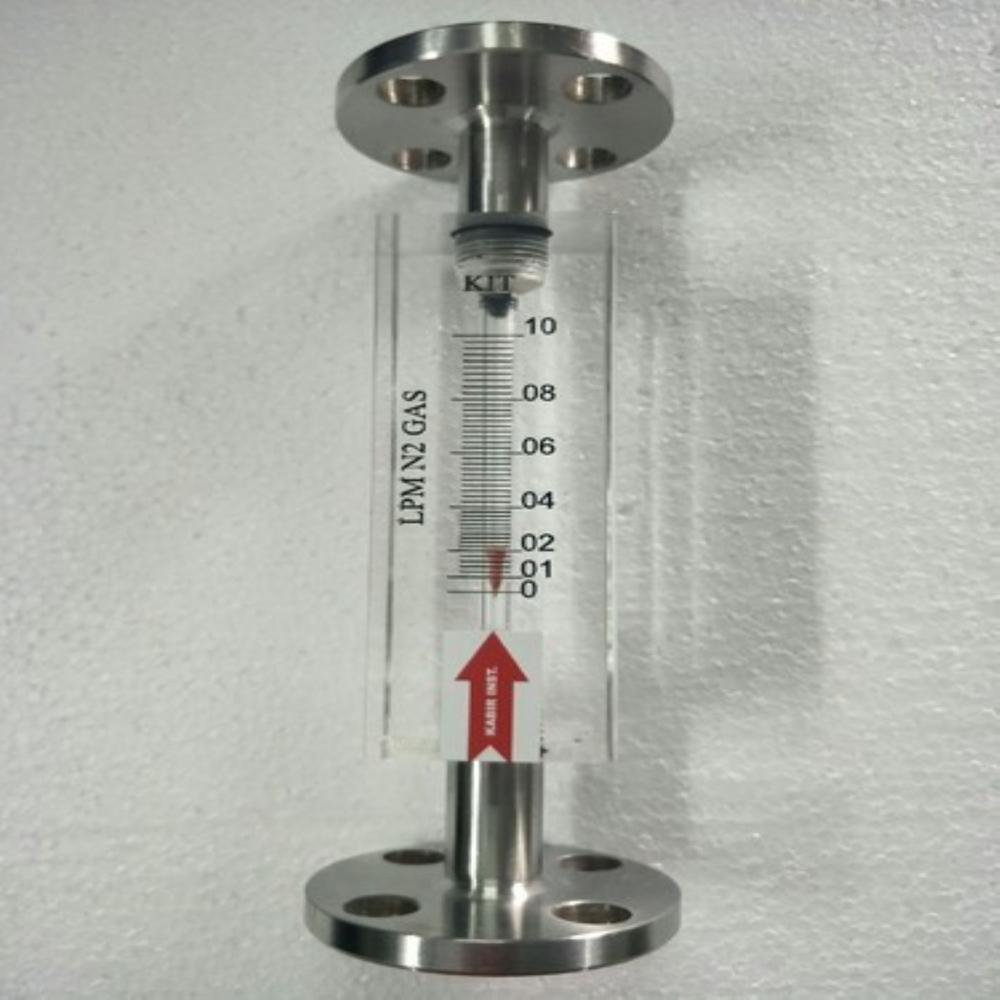

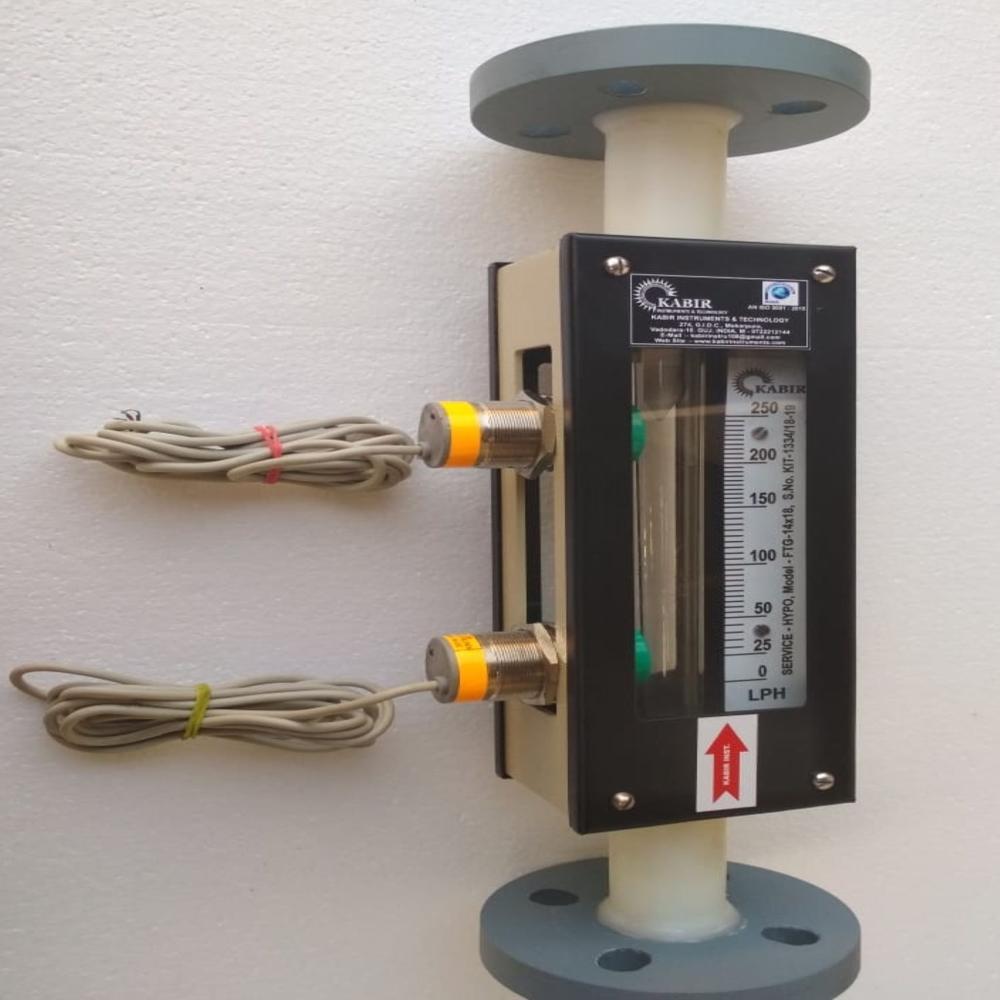

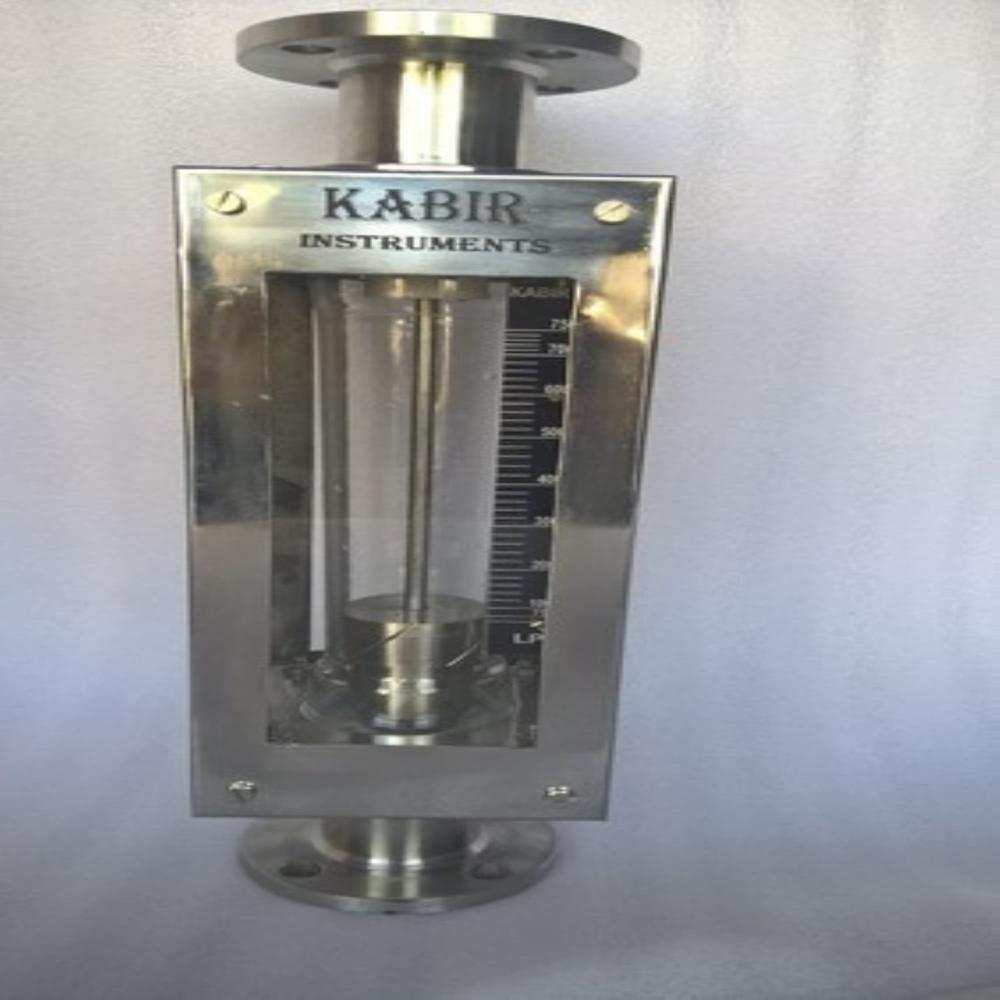

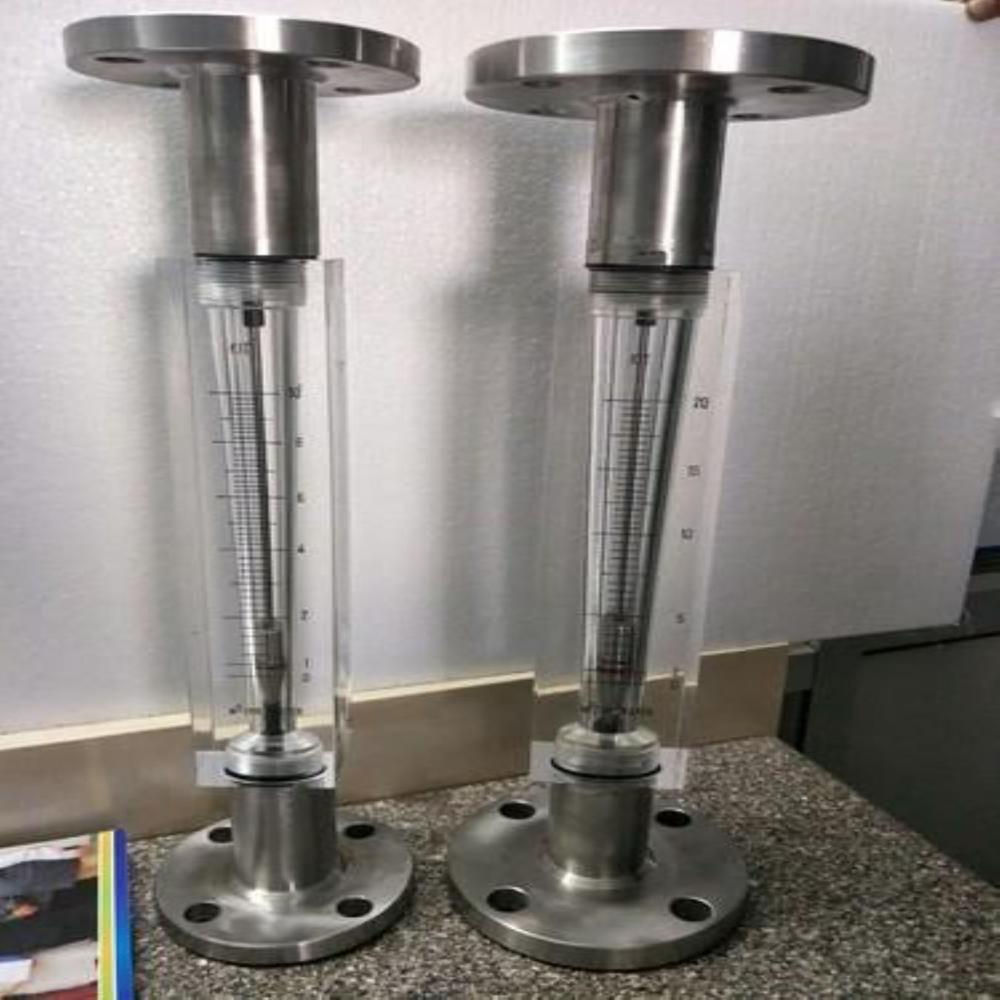

Industrial Glass Tube Rotameter

Product Description

Glass Tube Rotameter

"KABIR" manufactures Variable Area Flowmeters (Rotameters) which are mainly used for Liquid & Gas applications for measurement of Rate of Flow indication. The Float moves up & down in the tapered Borosilicate Glass Tube with fluid flow from bottom to top. The Float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. End fittings : - MS, CS, SS304, SS316, CF8M, CF8, C.I. PTFE lined, C.I. SS lined, PVC and Any other desired material subject to its Availability. Tube :- Borosilicate Glass. Float :- SS 316, PTFE and other on request. Packing :- Neoprene, PTFE, Silicon, Viton. Frame & Cover :- MS, Optionally SS. :- Accuracy :- +/- 2% F.S.D. Temperature Ratings: - Maximum Operating Temperature rating is 121 o C for Gas services and 93o C for Liquid services. Repeatability : - 0.5 % Rangebility : - 10:1 Connections : - Flanged OR Screwed OR Triclover Joint OR Hose Nipple. Enclosure : - IP 55 OR IP 65 on request. Scale length : - 220 mm. Pressure Ratings :- Meter Size Max. Op. Press. in Kg/Cm² (g) 15 20 20 17 25 12 40 10 50 08 80 06
